Exercise 1: Basic Drawing

Objective: Create a simple drawing application with multiple modes and practice using Terra Draw.

Task Overview

In this exercise, you'll enhance your Terra Draw implementation and practice using the different drawing modes.

Step 1: Update Your Code

Make sure your implementation includes all the modes we've discussed:

// Update your TerraDraw configuration to include rectangle mode
draw = new TerraDraw({
    adapter: new TerraDrawMapLibreGLAdapter({ map }),
    modes: [
        new TerraDrawPointMode(),
        new TerraDrawLineStringMode(),
        new TerraDrawPolygonMode(),
        new TerraDrawRectangleMode(), // Add rectangle mode
        new TerraDrawSelectMode()
    ]
});

Add the rectangle button to your HTML:

<div class="controls">
    <button id="point-mode">Point Mode</button>
    <button id="line-mode">Line Mode</button>
    <button id="polygon-mode">Polygon Mode</button>
    <button id="rectangle-mode">Rectangle Mode</button>
    <button id="select-mode">Select Mode</button>
    <button id="clear">Clear All</button>
</div>

Add the event listener for the rectangle mode:

const rectangleBtn = document.getElementById('rectangle-mode') as HTMLButtonElement;

rectangleBtn?.addEventListener('click', () => {
    draw.setMode('rectangle');
    updateActiveButton('rectangle-mode');
});

Step 2: Practice Drawing

Test each drawing mode and get familiar with the interactions:

1. Point Mode:
2. Click anywhere on the map to create points

3. Try creating several points around Auckland

4. Line Mode:

5. Click to start a line
6. Click additional points to add vertices

7. Double-click or press Enter to finish the line

8. Polygon Mode:

9. Click to start a polygon
10. Click additional points to create the polygon shape

11. Double-click or click the starting point to close the polygon

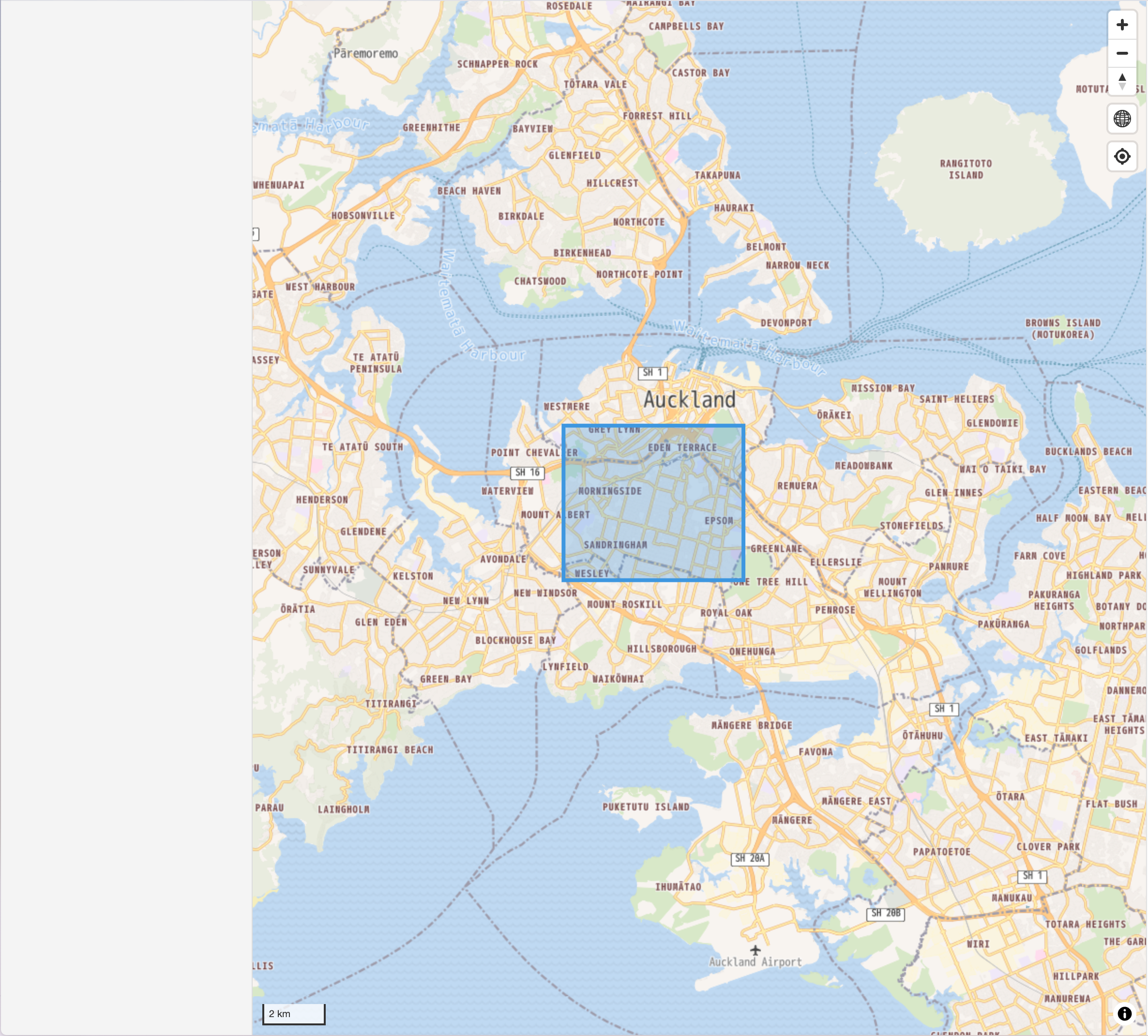

12. Rectangle Mode:

13. Click and drag to create rectangles

14. Notice how the rectangle is constrained to rectangular shapes

15. Select Mode:

16. Click on existing features to select them
17. Try dragging features to move them
18. Try dragging the handles on selected features to modify them

Step 3: Observe Behavior

Pay attention to the different behaviors:

• Visual Feedback: Notice the different colors and styles for each mode
• Interaction Patterns: How each mode handles user input differently
• Selection Capabilities: What you can do with features in select mode
• Mode Switching: How the active button state changes

Step 4: Test Clear Functionality

• Create several features with different modes
• Use the "Clear All" button to remove everything
• Verify that all features are removed from the map

Expected Results

After completing this exercise, you should be able to:

• Switch between different drawing modes
• Create various types of geometric features
• Select and modify existing features
• Clear all features from the map
• Understand the basic Terra Draw workflow

Troubleshooting

If you encounter issues:

• Map not loading: Check the console for errors and ensure MapLibre GL CSS is loaded
• Buttons not working: Verify event listeners are set up correctly
• Drawing not working: Make sure draw.start() is called after map load
• Select mode issues: Ensure features exist before trying to select them

What's Next?

Now that you've practiced basic drawing, let's explore the data structure and learn how to access drawing information.

Next: Exercise 2 - Exploring Data
