Exercise 2: Exploring Data

Objective: Learn how to access and examine Terra Draw's geographic data structure.

Task Overview

In this exercise, you'll add functionality to monitor and display information about the features you draw.

Step 1: Add Feature Counter

Add a feature counter to your HTML:

<div id="app">
    <h1>Terra Draw Workshop</h1>
    <div id="feature-count">Features: 0</div>
    <div class="controls">
        <!-- your existing buttons -->
    </div>
    <div id="map"></div>
</div>

Style the counter in your CSS:

#feature-count {
    margin: 10px 0;
    padding: 10px;
    background: #f0f0f0;
    border-radius: 4px;
    font-weight: bold;
}

Step 2: Add Change Event Listener

Add this code after draw.start():

// Listen for changes and update the feature count
draw.on('change', () => {
    const snapshot = draw.getSnapshot();
    console.log('Current features:', snapshot);

    // Update feature count display
    const featureCount = document.getElementById('feature-count');
    if (featureCount) {
        featureCount.textContent = `Features: ${snapshot.length}`;
    }

    // Log each feature's details
    snapshot.forEach((feature, index) => {
        console.log(`Feature ${index + 1}:`, {
            type: feature.geometry.type,
            mode: feature.properties.mode,
            coordinates: feature.geometry.coordinates
        });
    });
});

Step 3: Add Feature Details Display

Add a details section to your HTML:

<div id="feature-details">
    <h3>Feature Details</h3>
    <pre id="feature-json">No features selected</pre>
</div>

Style the details section:

#feature-details {
    margin: 20px 0;
    padding: 15px;
    background: #f8f9fa;
    border-radius: 4px;
    text-align: left;
}

#feature-json {
    background: white;
    padding: 10px;
    border-radius: 4px;
    font-size: 12px;
    overflow-x: auto;
}

Step 4: Add Selection Event Handler

Add this code to show selected feature details:

// Listen for feature selection
draw.on('select', (event) => {
    console.log('Feature selected:', event);
    const detailsElement = document.getElementById('feature-json');

    if (detailsElement && event.selectedFeatures.length > 0) {
        const feature = event.selectedFeatures[0];
        detailsElement.textContent = JSON.stringify(feature, null, 2);
    }
});

// Clear details when nothing is selected
draw.on('deselect', () => {
    const detailsElement = document.getElementById('feature-json');
    if (detailsElement) {
        detailsElement.textContent = 'No features selected';
    }
});

Step 5: Practice and Observe

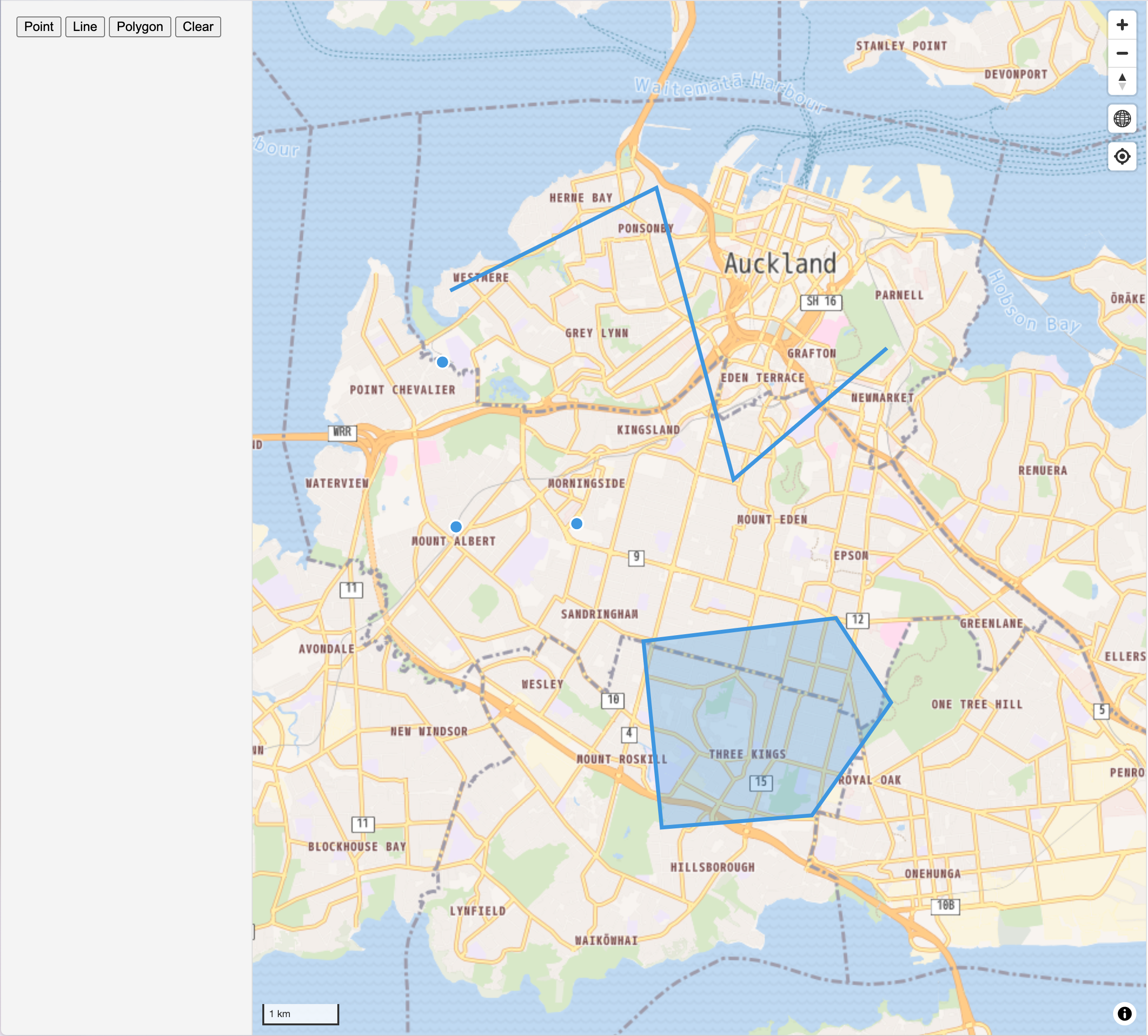

1. Draw various features and watch the counter update
2. Open the browser console (F12) and observe the logged feature data
3. Switch to select mode and click on features to see their detailed JSON
4. Edit features in select mode and watch how the data changes
5. Clear all features and see the counter reset

Step 6: Analyze the Data Structure

Examine the logged data and notice:

• Feature Type: How different modes create different geometry types
• Coordinates: How coordinates are structured for different geometries
• Properties: The essential mode property and any other properties
• IDs: How Terra Draw assigns unique IDs to features

Questions to Explore

While working through this exercise, consider:

1. How does the coordinate structure differ between points, lines, and polygons?
2. What happens to the feature ID when you edit a feature?
3. How does Terra Draw maintain the relationship between features and modes?
4. What additional properties could you add to features?

Expected Results

After this exercise, you should understand:

• How to access Terra Draw's feature data using getSnapshot()
• The GeoJSON structure Terra Draw uses
• How to respond to drawing and selection events
• The importance of the mode property in Terra Draw features

What's Next?

Now that you understand Terra Draw basics and data structures, you're ready to explore advanced features like custom styling and event handling.

Next: Advanced Features
